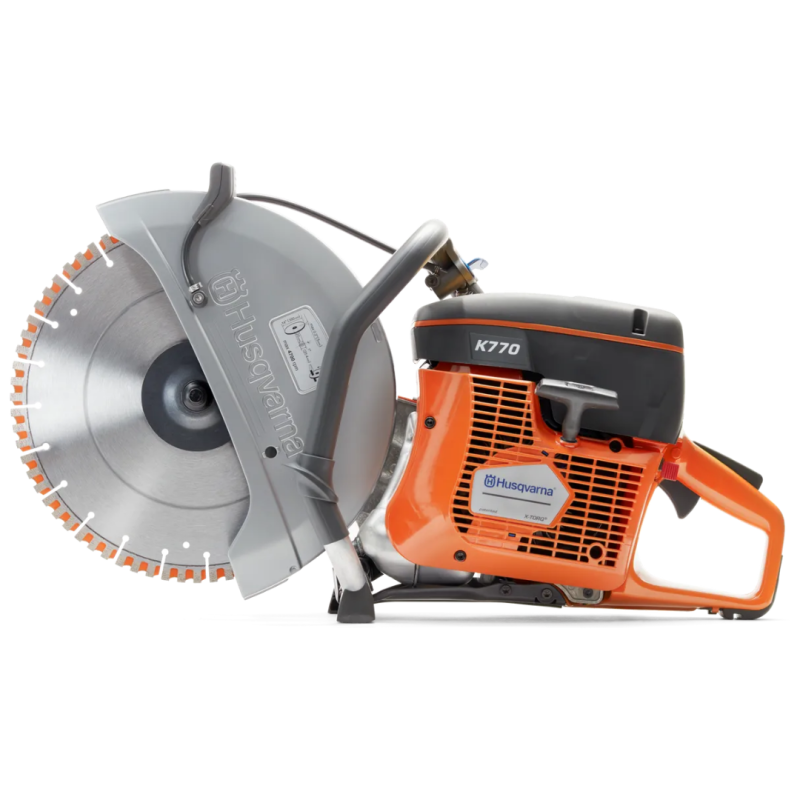

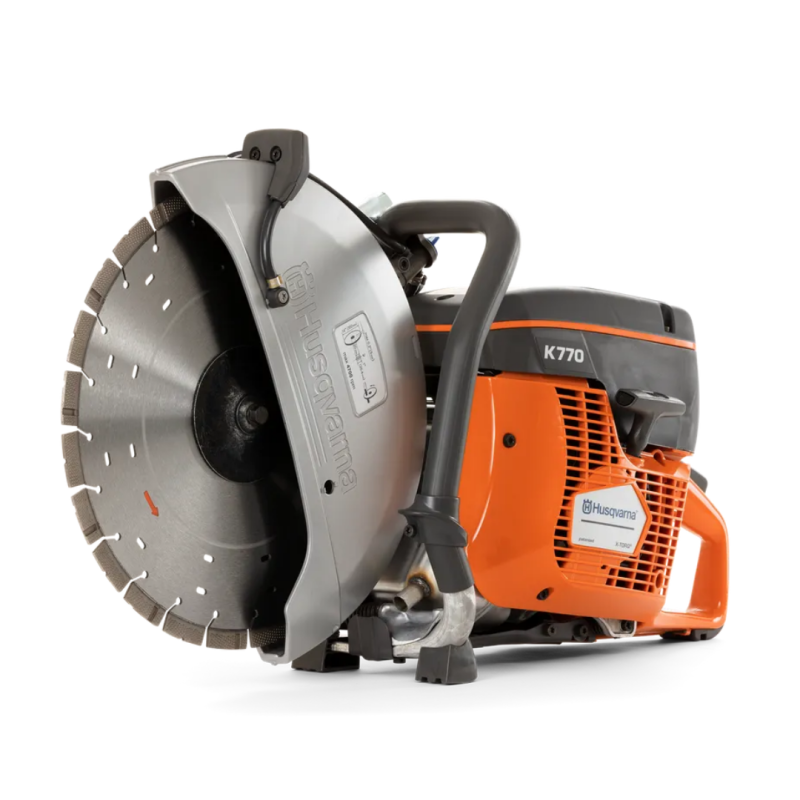

K 770
The Husqvarna K 770 is a powerful all-round power cutter with features that make it one of the best power cutters on the market. Equipped with semi-automatic SmartTension™ system allows for optimal power transmission, minimum wear and maximum belt life. The light weight, outstanding power-to-weight ratio, the reliable start and exceptionally low vibrations mean less strain and maximised productivity. Suitable for road work and easy to cut in a straight or curved track or close to sidewalk when used with KV7 trolley.
| Engine |
POWER CUTTER K 770 14" | 1" / 20mm |
POWER CUTTER K 770 12" | 20mm / 1" |
|
Output power |
5 hp | 5 hp |
|---|---|---|
| Cylinder displacement | 4.48 cu.inch | 4.48 cu.inch |
| Electrode gap | 0.02 in | 0.02 in |
| Cylinders | 1 | 1 |
| Number of strokes | 2-stroke engine | 2-stroke engine |
| Cutting deck |
|
|
| Cutting depth, max | 5 in | 4 in |
|---|---|---|
| Emission |
|
|
|
Exhaust emissions (CO₂ EU V) |
711 g/kWh | 711 g/kWh |
| Cutting System |
|
|
| Blade diameter, max | 14 in | 12 in |
| Arbor diameter | 1-7/8B | 1-7/8B |
| Blade thickness, max | 0.2 in | 0.2 in |
| Peripheral speed, max | 18,000 fpm | 16,000 fpm |
| Dimensions |
|
|
| Product size length | 23.82 in | 23.82 in |
| Product size width | 8.86 in | 8.86 in |
| Product size height | 16.34 in | 15.39 in |
| Weight | 22.4 lbs | 22 lbs |
| Sound and noise |
|
|
| Sound power level, guaranteed (LWA) | 115 dB(A) | 115 dB(A) |
| Sound pressure level at operators ear | 101 dB(A) | 101 dB(A) |
| Vibration |
|
|
| Vibrations left/front handle | 2 m/s² | 2.1 m/s² |
| Vibrations right/rear handle | 2.3 m/s² | 2.3 m/s² |
