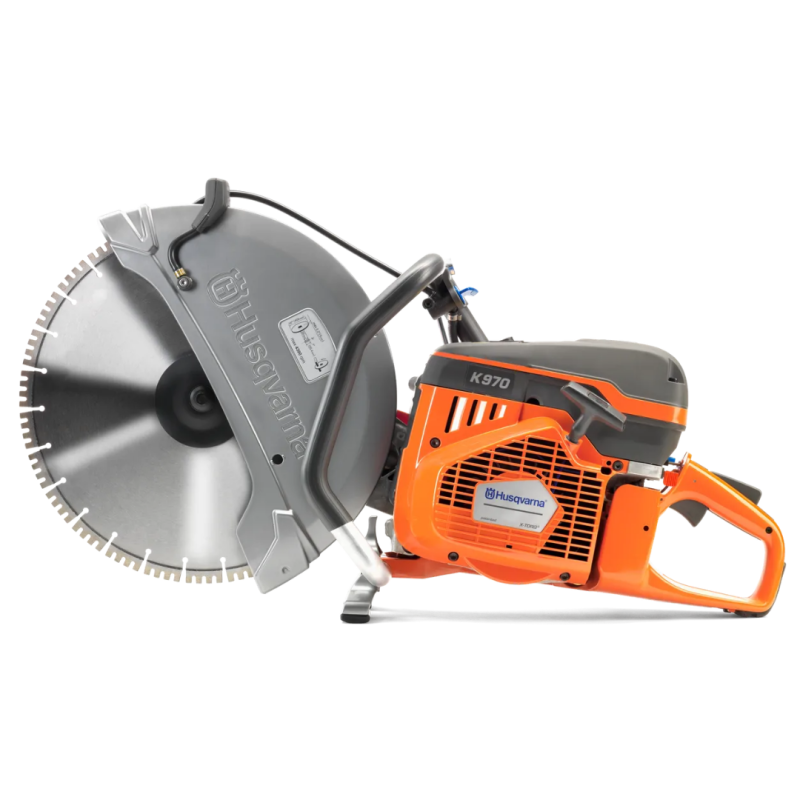

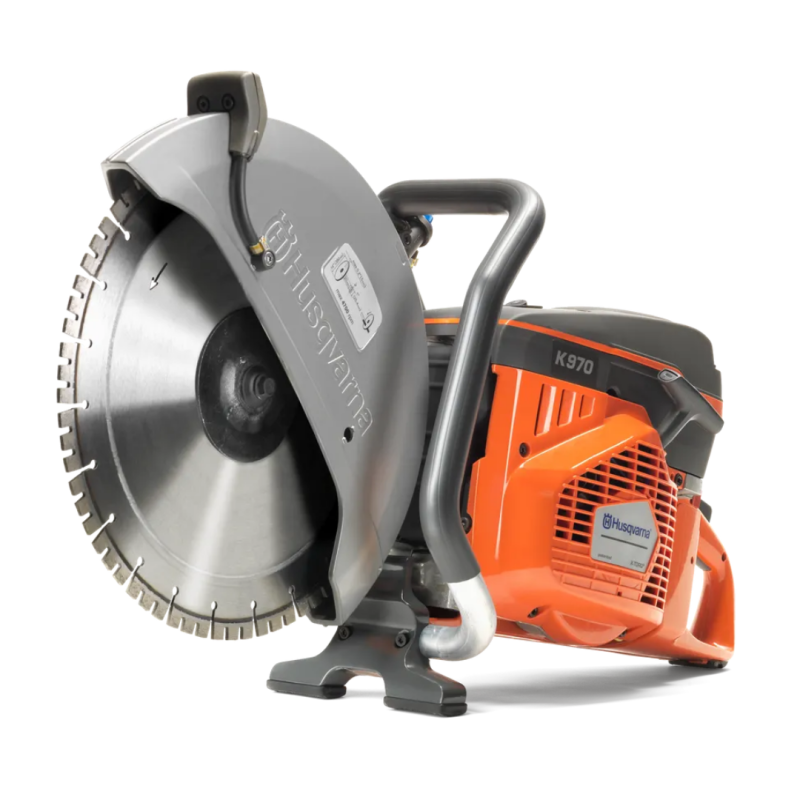

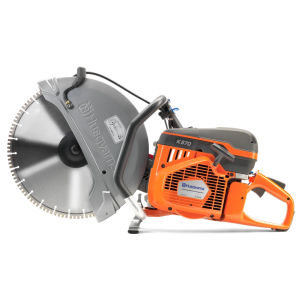

K 970
Sturdy, reliable, light and powerful - the K 970 power cutter is ready to perform when you are. The ultimate choice when you need an all-round cutter performing in the toughest conditions, withstanding climate and fuel variations. Suitable for road works when used with the corresponding KV 970 trolley. The trolley also means you can fully concentrate on the cutting job.
| Engine |
POWER CUTTER K 970 14" | 20mm/1" |
POWER CUTTER K 970 16" | 20mm/1" |
|
Output power |
6.5 hp | 6.5 hp |
|---|---|---|
| Cylinder displacement | 5.71 cu.inch | 5.71 cu.inch |
| Electrode gap | 0.02 in | 0.02 in |
| Cylinders | 1 | 1 |
| Number of strokes | 2-stroke engine | 2-stroke engine |
| Cutting deck |
|
|
| Cutting depth, max | 5 in | 6 in |
| Emission |
|
|
|
Exhaust emissions (CO₂ EU V) |
736 g/kWh | 736 g/kWh |
| Cutting System |
|
|
| Blade diameter, max | 14 in | 16 in |
| Arbor diameter | 1-7/8B | 1-7/8B |
| Blade thickness, max | 0.2 in | 0.2 in |
| Peripheral speed, max | 18,000 fpm | 18,000 fpm |
| Dimensions |
|
|
| Product size length | 26.02 in | 27.09 in |
| Product size width | 8.43 in | 8.43 in |
| Product size height | 17.48 in | 18.94 in |
| Weight | 24.3 lbs | 25.6 lbs |
| Sound and noise |
|
|
| Sound power level, guaranteed (LWA) | 115 dB(A) | 115 dB(A) |
| Sound pressure level at operators ear | 104 dB(A) | 104 dB(A) |
| Vibration |
|
|
| Vibrations left/front handle | 3.8 m/s² | 3.5 m/s² |
| Vibrations right/rear handle | 4.2 m/s² | 4 m/s² |
