HS SERIES
Durable trash pumps in two sizes—a 1HP & 3-inch discharge and a 1/2HP & 2-inch discharge. Both designed to pump water containing sand, solids and debris with minimal wear and clogging.

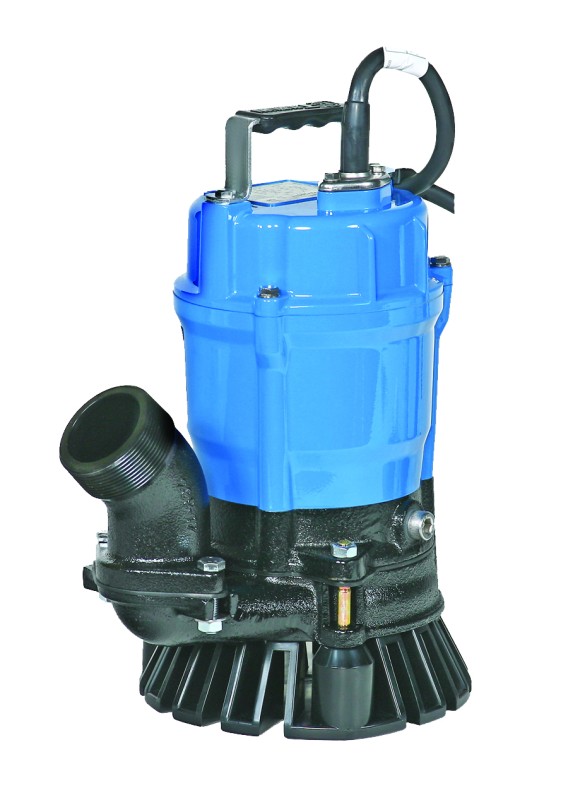

HS2.4S MANUAL ELECTRIC SUBMERSIBLE PUMP
Durable trash pumps in 2 inches discharge & 1/2HP. Designed to pump water containing sand, solids and debris with minimal wear and clogging.
- Built-in shaft mounted agitator suspends solids.
- Urethane Semi Vortex Impeller for maximum durability and pump performance.
- Dual inside mechanical seal with SiC faces for longer life.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particles.
TECHNICAL SPECIFICATIONS
- Motor Output (HP): 1/2
- Phase: Single
- Discharge Bore (in.): 2
- Voltage/Amp: 110/5.4
- Cable Length (ft.): 20
- Dimension (Dia x H, in.): 10-1/16 x 12-15/16
- Continuous Running Water Level (in.): 3.5
- Pump Weight (lbs.): 30
